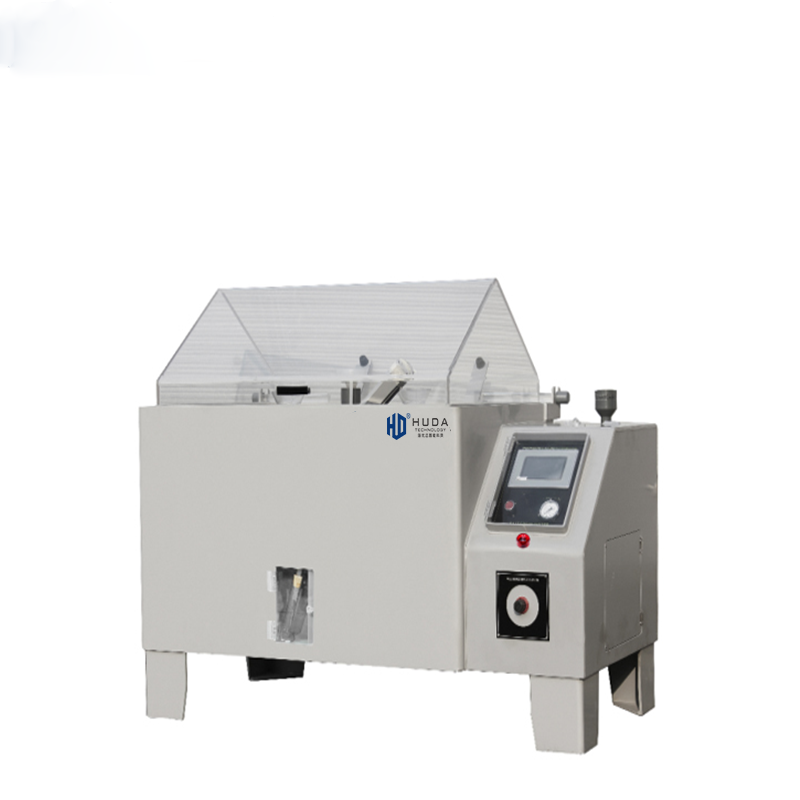

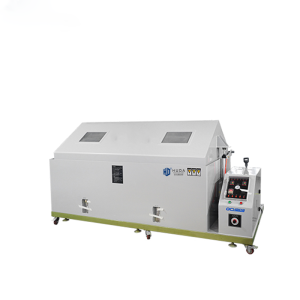

Salt Spray Test Chamber
HUD-E808
Salt Spray Test Chamber is mainly suitable for the surface treatment of various materials, including coatings, electroplating, organic and inorganic coatings, extreme treatments, anti-rust oils and other anti-corrosion treatments to test the corrosion resistance of products.
Specifications
| Model | HUD-E808-60 | HUD-E808-90 | HUD-E808-120 | HUD-E808-160 | HUD-E808-200 |
| Inner Chamber Size (L×W×H) cm | 60×40×45 | 90×60×50 | 120×100×50 | 160×100×50 | 200×120×60 |
| Outside Chamber Size (L×W×H)cm | 107×60×118 | 141×88×128 | 190×130×140 | 230×130×140 | 270×150×150 |
| Equipment Material | Both inside & outside shell adopt imported P.V.C rigid plastic board, and tank cover uses imported transparent P.V.C. rigid plastic board | ||||
| Temperature Range | 35℃～55℃ | ||||
| Temperature Fluctuations | ±0.5℃ | ||||
| Temperature Uniformity | ≦2.0℃ | ||||
| Temperature Precision | ±1℃ | ||||
| Test Chamber Temperature | Salt Spray Method (NSS ACSS)35±1℃ Corrosion-resistant Testing Method(CASS) 50±1℃ | ||||
| Saturated air Barrel Temperature | Salt Spray Method (NSS ACSS)47±1℃ Corrosion-resistant Testing Method(CASS) 63±1℃ | ||||
| Brine Temperature | 35℃±1℃ | ||||
| Spray Quantity | 1.0~2.0 ml / 80cm2 / hr (Collect at least 16 hours and take the average) | ||||
| PH | Salt Spray Method (NSS ACSS6.5~7.2) Corrosion-resistant Testing Method (CASS)3.0~3.2 | ||||
| Lab Volume | 108L | 270L | 600L | 800L | 1440L |
| Brine Tank Capacity | 15L | 25L | 40L | 40L | 40L |
| Power | 1∮AC220V,10A | 1∮AC220V,15A | AC 1∮,220V,30A | ||
| Multiple Safety Protection Devices | Current discharge protection, over pressure protection, over temperature protection, over load fuse protection | ||||
| Accessories | Testing Salt/ Measuring tank/ Nozzle Equipment each 1 set | ||||
