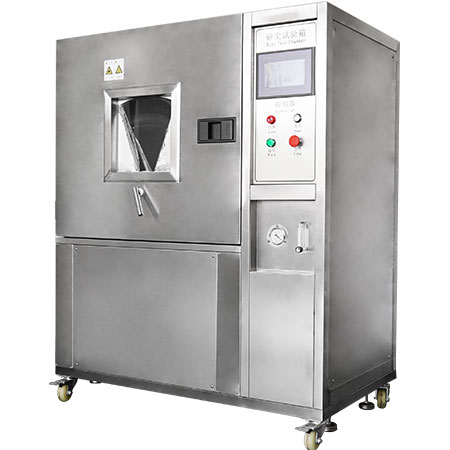

IP5X & IP6X Sand Dust Test Chamber
HUD-E706
IP5X & IP6X Sand Dust Test Chamber is suitable for testing the enclosure sealing performance of the product, and is mainly used for the IP5X and IP6X tests specified in the enclosure protection level standard. It is mainly to simulate the damage caused by sandstorms to locks, automobile and motorcycle parts, seals, power meters and other products.
Specifications
| Model | HUD-E706 |
| Internal dimension | 800W*800D*800Hmm |
| External dimension | 1300W*1000D*1700Hmm |
| Test sample | Size W20cm- L30cm-D15cm, weight 0.5kg |
| Chamber material | SUS304 Stainless steel |
| Specifications of square mesh sieve | Mesh hole 75um, mesh metal wire diameter 50um |
| Talcum powder amount | 2kg/ m³ |
| Airflow speed | No more than 2m/s |
| Door | Left open door with tempered glass door |
| Controller | PLC Touch Screen controller, programmable to set as below cycle:
Blowing dust time (Stop/Blow) m/s Cycle time: can be adjusted Pre-set test time: 0s ~99m99s |
| Vacuum system | Pressure gauge, air filter, Pressure regulating FRL, connecting pipe, Vacuum pump |
| Vacuum pump capacity | 60-600 L/H |
| Fan | Centrifugal fan |
| Safety protection devices | Meter over-temperature function, Phase shortage protection, Power short-circuit protection |
| Power supply source | 3-phase, AC380V±10%,50Hz (can be appointed) |
