Model:
- AFV-P-600
- AFV-P-1250
- AFV-P-2500
- AFV-P-5000

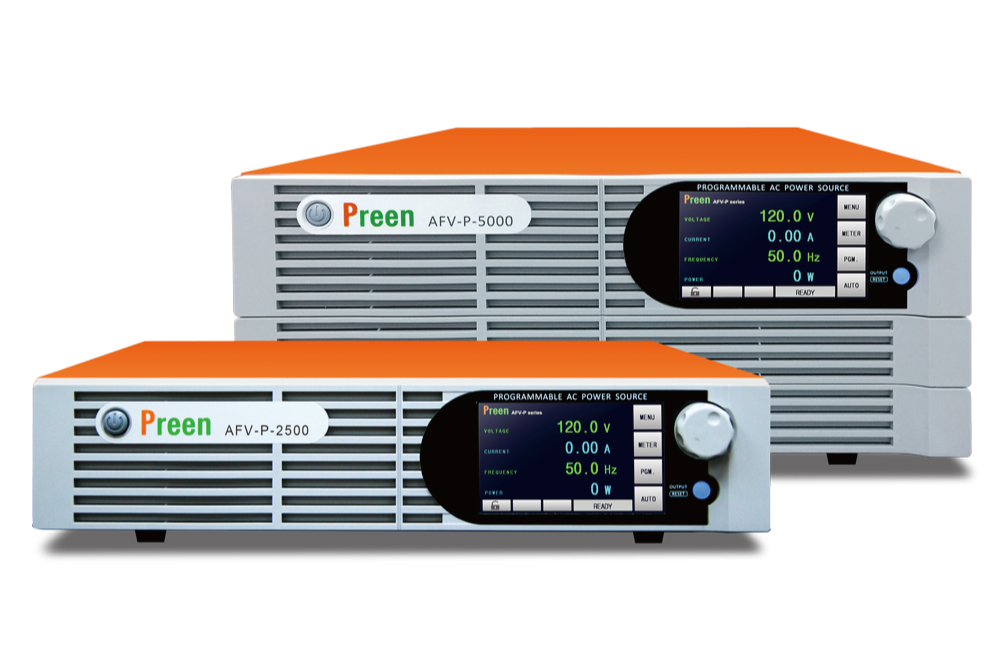

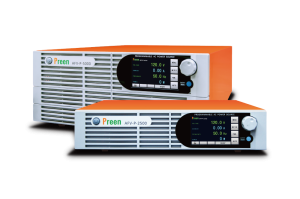

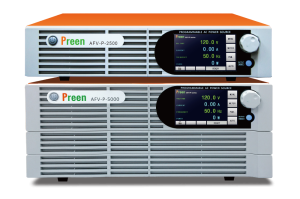

AFV-P Series is a programmable AC power source with DC output and precision measurement. This compact power source provides clean power with THD less than 0.3% at 5-100Hz and it delivers output voltage of 0-310 V and frequency of 15-1000Hz (opt. 5-2000 Hz). It is ideal for commercial, defense and aerospace test applications from design verification, quality assurance, ATE to production line.
Specifications
-
Output Power
Single Phase: 600VA / 1.25kVA / 2.5kVA / 5kVA
-
Output Voltage
- 0~155V (Low Range)
- 0~310V (High Range)
- 0~620V, 0~1240V (opt.)
-
Output Frequency
- A ver.: 5~2000Hz
- B ver.: 15~1000Hz
-
THD
≦ 0.3% at 5~100Hz, ≦ 0.5% at 101~500Hz, ≦ 0.8% at 501~1000Hz, ≦ 1.5% at 1001~1500Hz, ≦ 2% at 1501~2000Hz (Resistive Load)
-
Load Regulation
≦ 0.07% F.S. (Resistive Load)
-
Crest Factor
≧ 3
-
Inrush Current
≧ 4.5/ opt. 9 times of max.output current (rms)
-
Response Time
≦ 300 μs
-
DC Output Voltage
0~210V / 0~420V
-
Input Voltage
- AFV-P-600 & AFV-P-1250: 98~132VAC / 196~264VAC
- AFV-P-2500 & AFV-P-5000: 196~264VAC (opt. 175-235VAC)
-
Input Frequency
47~63Hz (opt. 400Hz)
-
Interfaces
- Standard: RS232 / RS485 / Ethernet / USB / PLC Remote In&Out
- Optional: GPIB / Analog
-
Dimensions (HxWxD)
- AFV-P-600 & AFV-P-1250: 89 x 442 x 495 mm
- AFV-P-2500: 89 x 442 x 650 mm
- AFV-P-5000: 176 x 442 x 665 mm
-
Weight
- AFV-P-600: 16kg (35.27bs)
- AFV-P-1250: 20kg (44.09bs)
- AFV-P-2500: 31.3kg (69lbs)
- AFV-P-5000: 61.5kg (135.58lbs)
